Freakshow HD 2×4-L (EU only)

600,00  (excl. VAT)

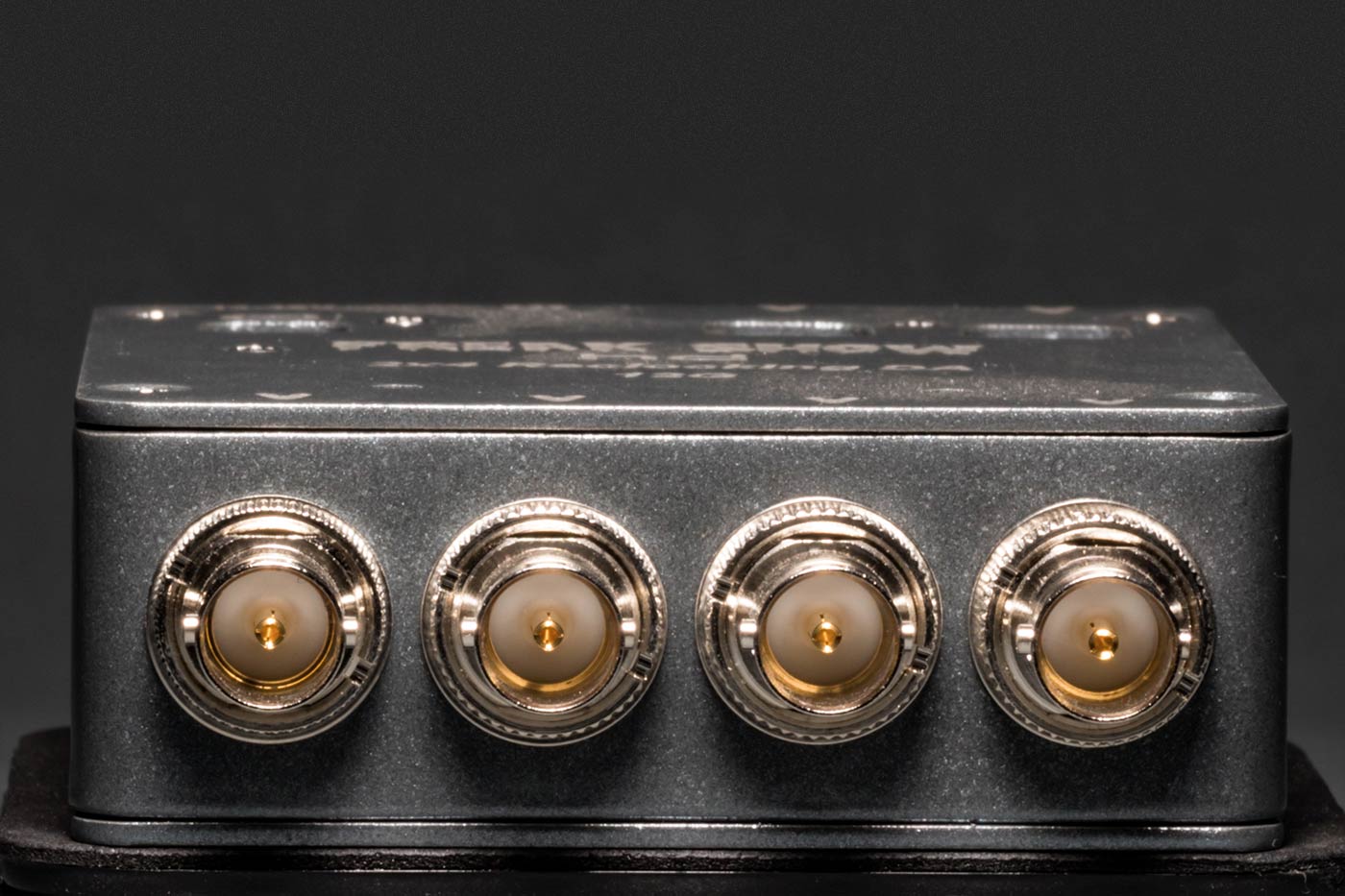

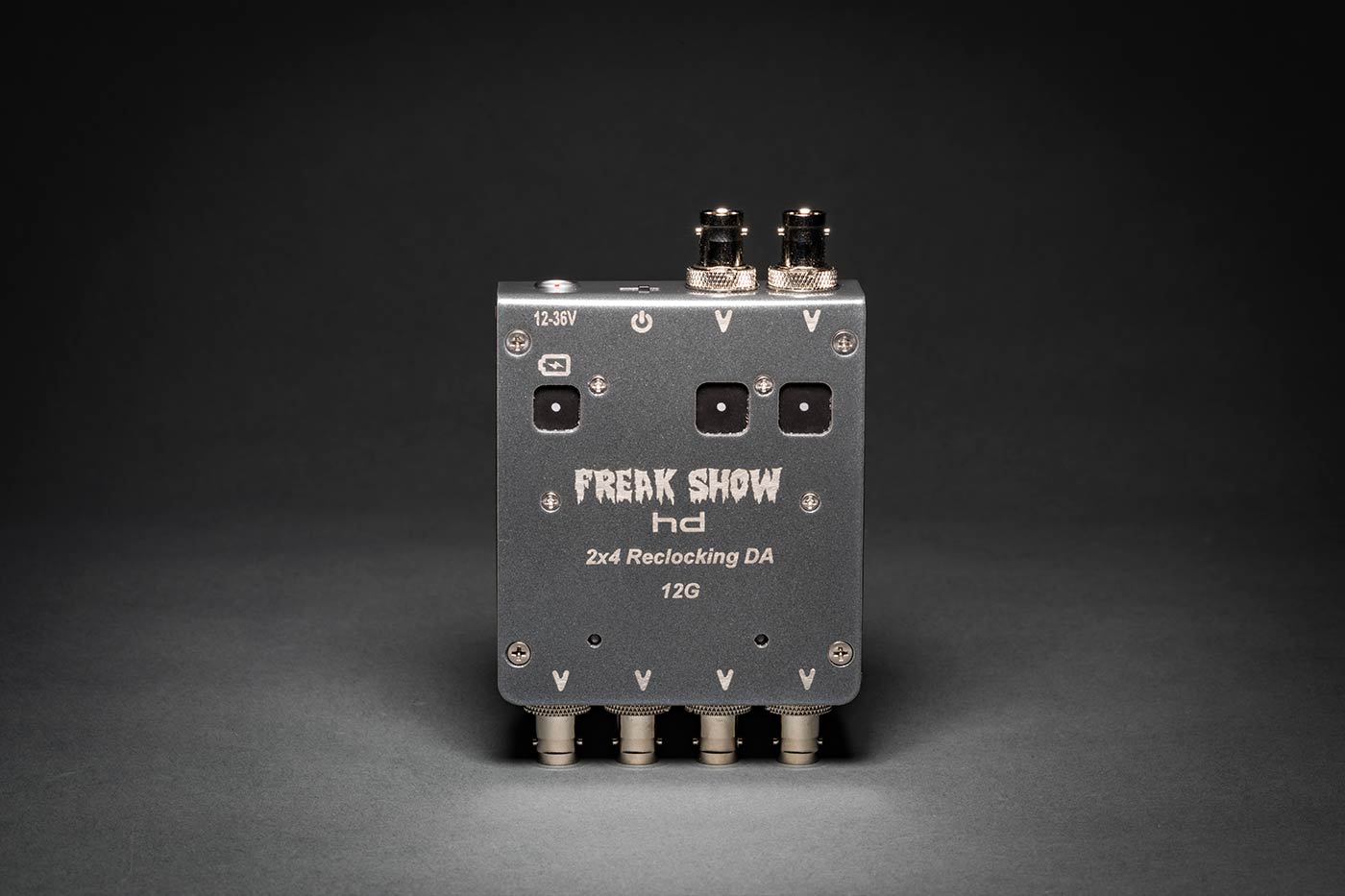

2×4 12G-SDI Switchable Reclocking Distribution Amplifier w Internal Li Pro Battery

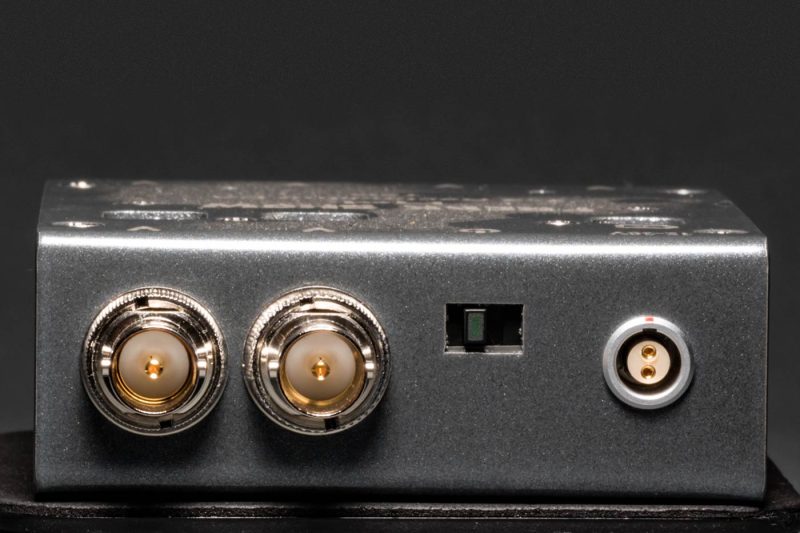

Share up to two channels of 12G-SDI with your crew using  the Freakshow HD 2×4 12G-SDI Switchable Reclocking Distribution Amplifier. Designed to function as a complete production video distribution system, this DA features two inputs and four outputs, and it reclocks and equalizes your output for maximum transmission distance. This 12G switching DA has a small footprint and internal battery that can run for up to 12 hours, which makes it perfect for location use. The touch pad control allows you to select from A/B, 1×4, and 2×4 switching modes for signal flexibility. The reclocked and equalized output extends two 12G signals up to 246′. The model L unit features a LEMO-type locking power input. Included in the box is a 12 VDC power supply for running the unit on AC power or charging the internal 2200mAh LiPo battery.

– 2 inputs x 4 outputs
– Three switchable modes
– Touchpad
– Battery Powered



Tech Specs

Formats
3Gb-270Mb SDI Auto Select

Inputs
2x HD-SDI, SDI (SMPTE 259/292/296/424)
2x BNC

Outputs
4x HD-SDI, SDI (SMPTE 259/292/296/424)
4x BNC
equalization and re-clocking

Cable Equalization
3Gb, 120m

Input/ Output Return Loss
>15db, 270Mb – 3Gb Power
+12-36VDC, Regulated

Battery
12 Hour rechargeable lithium ion battery
Battery indication button





Lieferfrist und Warenverfügbarkeit:

Lieferung innerhalb der EU binnen 1-7 Werktagen
(s. Versandkosten/Lieferbeschränkungen).

Only 4 left in stock

SKU: AF_1030 Category:
Additional information
Weight 0,5 kg
Dimensions 10 × 10 × 10 cm
